Glass fiber scraper
- Commodity name： Glass fiber scraper
- Product Description
-

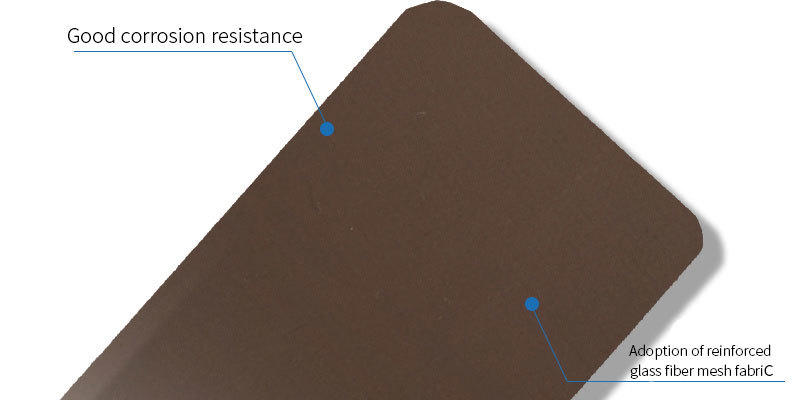

High strength and high performance
Using high-strength glass fiber cloth, more excellent performance, more convenient to use
Comparison of mechanical properties with commonly used materials
Materials Density
(g/cm³)Tensile strength
(MPa)specific strength
[MPa/(g/cm7)]tensile modulus
(GPa)specific modulus
[GPa/(g/cm7)]Fiberglass/Polyester 2 1245 623 48.2 24 Metal Materials Structural Steel 7.9 1197 152.6 206 26 Aluminum alloy 2.8 393 141.3 72 26 titanium alloy 4.5 712 157.5 116.7 25 Product model information
JBEIK-V
high strength glass fiber cloth
epoxy resin
Use temperature: ≤ 180°C
Water absorption: less than 0.2%
Bending strength: more than 300MPa
Universal type that can be used on many paper machines
Glass fiber scraper. In most cases,
It is permitted to convert the metal scraper into a composite material.
Scraper. In the press section, the dryer has a good
cleaning effect.
JBEIK-VI
high strength glass fiber
epoxy resin
Use temperature: ≤ 190°C
Water absorption: less than 0.2%

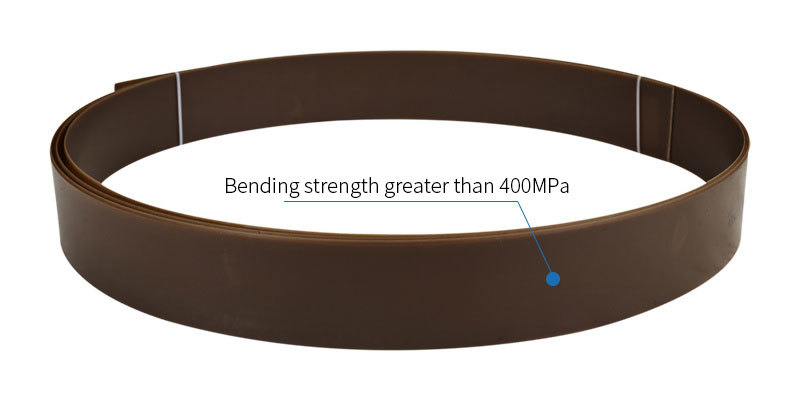

Bending strength: more than 400MPa
Has a high cleaning effect,
Suitable for scraping, cleaning effect requirements
Higher parts.
Aviation grade epoxy resin
With aviation grade epoxy resin, to ensure the excellent use of the product in the paper machine, cleaning function
Special Scraper Blade
 |
 |
| Sealing scraper blade | toothed scraper blade |
| Advantages: selection of domestic high-quality stainless steel processing, can be produced according to user requirements | Advantages: selection of domestic high-quality stainless steel processing, can be produced according to user requirements |
Ceramic alloy coated doctor blade
Features
Super wear-resistant, continuous operation, high cost performance, greatly improve paper and output
Service life of the blade
The blade and the rotating roller rub for a long time, and the blade wears more. The service life of the blade has a lot to do with the material of the blade, the correct use of the blade, the material characteristics of the roller, and the amount of foreign matter on the surface of the roller.
Some paper machine special roller, 1.5mm wear will need to replace the blade, such as continue to use, the following problems may occur:
1. Damage to the roller
2. Vibration in front of blade
3. Roller foreign matter is not completely clear
